4 Row Aluminum Radiator for 1960-1962 Chevy GMC Apache Radiador for 60-62 Suburban C/K Series C10 Panel Pickup Truck V8 1961 DPI6062 Downflow Radiators Shroud 1x16" Fans Thermostat Relay Kit

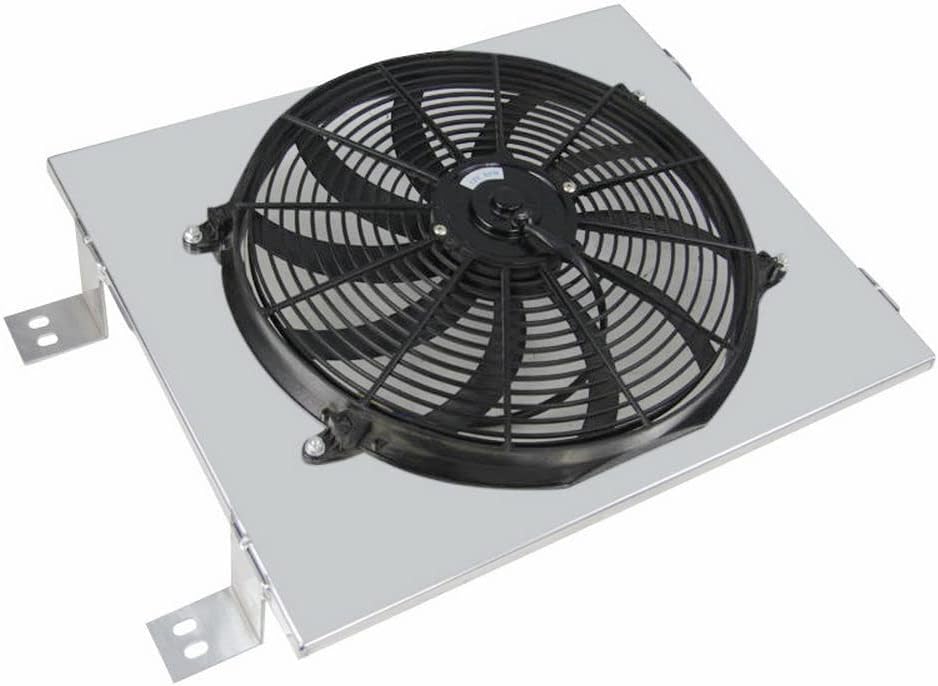

Fitment:For 1960 1961 1962 GMC Chevy Apache Pickup TruckFor Chevy Suburban GMC C10 Panel Pickup Truck V8 1960-1962For Chevy Suburban GMC C/K Series Pickup Truck V8 60-62Package Include:1 x 4-Row AA5052 Aluminum Radiator1 x CNC Machined Radiator Cap1 x AA5052 Aluminum Shroud1 x 16" Fans (Includes mounting kits)1 x Thermostat Relay KitRadiator DetailsRow Count: 4 RowCore Size: 18.90"H x 21.57"W x 2.44"TOverall Size: 26.57"L x 25.00"W x 6.89"HInlet/Outlet: 1.50"/1.77"Transmission oilcooler: φ26*205*G1/4(Z)Radiator Crafts:100% welded by TIG, No EpoxyPlacement on Vehicle: Engine CompartmentMounting Type: Bracket MountFitment Type: Direct ReplacementSurface Finish: Aircraft Grade Raw Aluminum Tank & CorePetcoke Drain: OEM Style Brass Petcoke DrainRadiator Cap: CNC Machined Filler Neck And CapFan Details:Maximum Fan CFM: 2000±200Fan Diameter x Height x Thickness:16.05" x 16.05" x 2.79"Number of Blades: 10 bladesMaximum Fan RPM: 2,250 rpmBlade Material: PlasticAmp Draw: 12.70 ampsIncludes the Mounting Tabs for an Easy Zip Tie InstallationRelay Kit Instructions:RED + connect directly to battery.WHITE wire to ignition switch power source.BLACK goes to thermos switch.BLUE wire goes to the Fans.Thermostat Relay Kit:Universal fit for any automotive vehicle and electric fan.Activates by grounding electric fans at preset temperature.180'F turn-on temperature, 165'F turn-off temperature.3/8" NPT thread-in brass probe w/ 1/2" NPT adapter included.Probe typically threads into radiator, water outlet or manifold.Part NumberOE/OEM Part Number: CC6062, EC6062, KKS6062, SBR6062, DPI6062Interchange Part Number: RA6062, RK6062, TYC6062, SPTCU6062, Q6062, MC6062, SC6062Other Part Number: RA-CHEVYT60-3, RA-CHEVYT60-2

• 4 Row Core Radiator for 1960-1962 GMC Chevy Apache Pickup Truck, for 60-62 Chevy Suburban GMC C10 Panel Pickup Truck, for 1960-1962 Chevy Suburban GMC C/K Series Pickup Truck V8, 1960 1961 1962 60 61 62
• Core Size: 18.90"H x 21.57"W x 2.44"T; Overall Size: 26.57"L x 25.00"W x 6.89"H; Inlet/Outlet: 1.50"/1.77"; Transmission oilcooler: φ26*205*G1/4(Z)
• High Performance. Full AA5052 Aircraft Aluminum craftsmanship radiator & exclusive tube design that dramatically increases cooling efficiency by up to 30%~45%, strong and durable, 100% welded by TIG, No Epoxy. 100% Leak Tested
• Easy to Install. Meticulously built to superior OE standards for a precise fit, direct bolt-on replacement. No Drilling or Modifications Needed for Installation
• Crafted by our professional team using the highest-grade materials for exceptional longevity.
