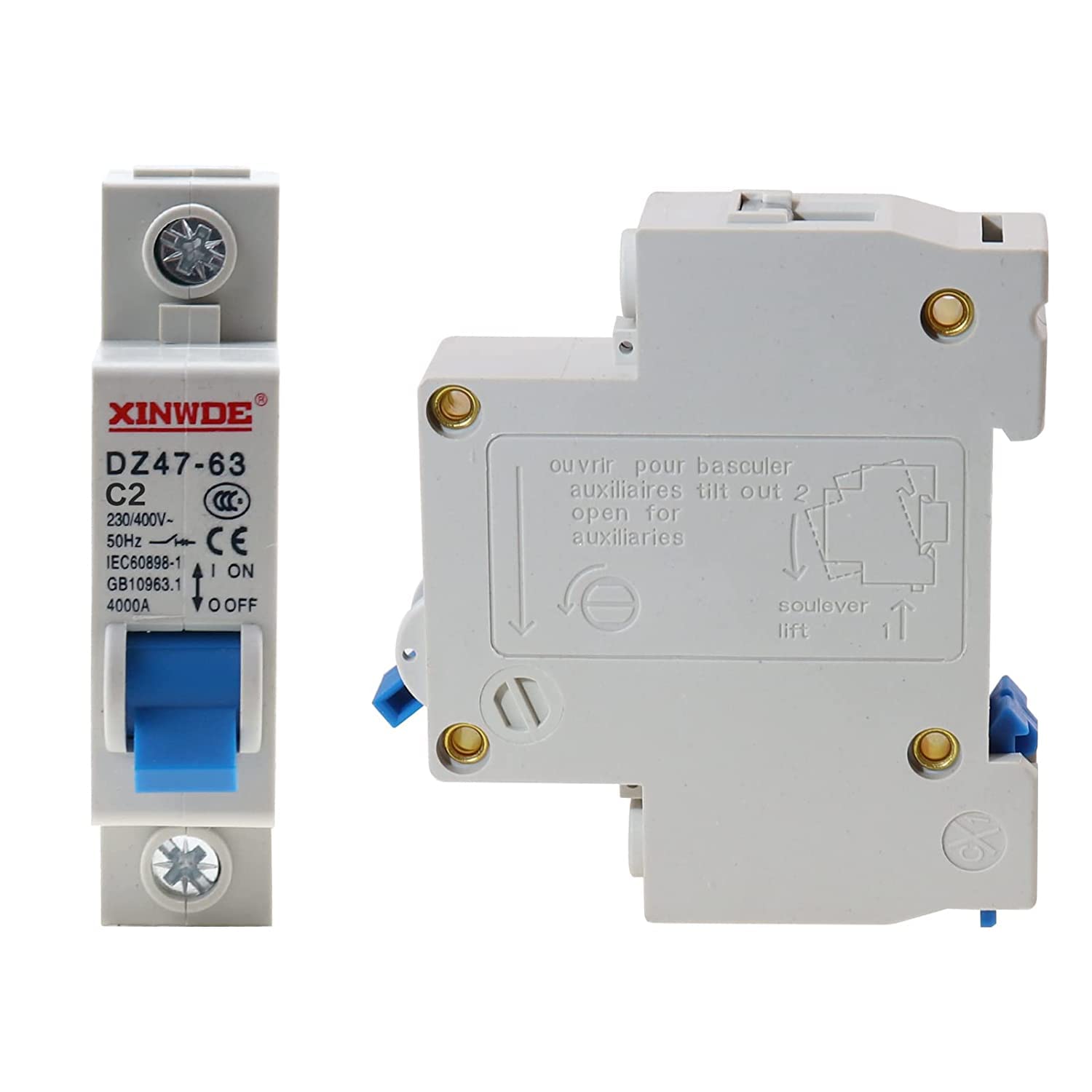

2 PCS 1 Pole 230/400V Low-voltage Miniature Circuit Breaker 2A Din Rail Mount DZ47-63 C2
Product details
| Management number | 234146389 | Release Date | 2026/06/27 | List Price | US$5.20 | Model Number | 234146389 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Specifications: Rated Current: 2A Rated Voltage: 230/400V Rated Circuit Breaking Capacity: 4000A Number of Pole: 1P Switch Type: ON+OFF, Latching Mechanical Life: 20,000 Times Electrical Life: 6,000 Times Rail Mounting: 35mm DIN Rail Material: Plastic, Electric Components Overall Size: 79 x 18 x 72mm PC flame retardant thermoset shell Suitable for isolation in accordance with industry standards: IEC EC 60898-1/GB10963.1 Package Content: 2x Miniature Circuit Breaker 2A
- Rated Circuit Breaking Capacity: 4000A; Rated Voltage: 230/400V, isolation in accordance with industrial standards: IEC EC60898-1/GB10963.1
- Rated Current: 2A ; Model: DZ47-63 C1 ; Number of Pole:1,For AC 50 Hz
- Modular sturcture, can be easily installed on the DIN standard guide rail in distribution box, bistable locking clip,Rail Mounting : 35mm DIN Rail
- Fast trip function, Ensure reliable operation of the load and prolong the life of circuit breaker. It can also work as on-off switch for load circuits.
- Be used for distribution and protection the facilities from damages caused by overload and short-circuit, the illumination of office buildings and residential buildings.
| ASIN | B0B8R2GKHZ |
|---|---|
| Model | HBD-DZ4763 1P 2A 2pcs |
| Voltage | 400 Volts |
| Brand Name | Bumbesti |
| Unit Count | 2.0 Count |
| Part Number | HBD-DZ4763 1P 2A 2pcs |
| Manufacturer | Bumbesti |
| Mounting Type | DIN Rail Mount |
| Current Rating | 2 Amps |
| Number of Poles | 1 |
| Circuit Breaker Type | Standard |
| Smart Home Compatibility | Not Smart Home Compatible |
| Item Dimensions D x W x H | 2.83"D x 3.11"W x 2.83"H |
